5 Axis CNC Universal Machining Center - Precision Multi-Axis Manufacturing Solutions

The most compelling advantage of the 5 axis cnc universal machining center lies in its ability to provide complete access to five sides of your workpiece without manual repositioning or fixture changes. This revolutionary capability transforms how you approach complex machining projects by eliminating the traditional workflow of removing parts, reorienting them in new fixtures, re-establishing datums, and hoping alignment remains accurate across multiple setups. With simultaneous five-axis movement, the machine tilts and rotates the cutting tool or workpiece to reach any feature from virtually any angle, completing parts that might otherwise require three or four separate setups in just one continuous operation. This comprehensive access becomes particularly valuable when machining components with undercuts, compound angles, or features on multiple surfaces that intersect at odd orientations. Consider aerospace brackets with mounting holes drilled at various angles or medical implants with organic contours that flow across multiple planes. The 5 axis cnc universal machining center handles these challenges effortlessly because it positions the tool perpendicular to the surface regardless of the feature orientation. This perpendicular approach produces cleaner cuts, extends tool life, and eliminates the need for specialized angle fixtures. The economic impact of single-setup machining extends beyond the obvious time savings. Each time you remove and reposition a workpiece, you introduce potential errors in alignment that accumulate throughout the production process. These positioning errors often push dimensions out of tolerance, creating scrap parts or requiring additional operations to correct. By maintaining the workpiece in its original position throughout machining, the 5 axis cnc universal machining center preserves the geometric relationship between all features, ensuring that hole patterns align perfectly, surfaces remain parallel or perpendicular as designed, and critical dimensions fall well within specification. Your inspection costs decrease because parts require less verification when produced in a single setup. The reduction in handling also minimizes the risk of workpiece damage, particularly important when machining delicate components or expensive materials where replacement costs are substantial. Operators appreciate the simplified workflow because they spend more time running productive operations rather than performing repetitive setup procedures, making your shop more efficient and your workforce more satisfied with meaningful work.

The 5 axis cnc universal machining center achieves surface finishes and dimensional accuracy levels that set new standards in precision manufacturing, delivering results that often eliminate secondary finishing operations entirely. This exceptional performance stems from the machine's ability to maintain optimal cutting conditions throughout each operation by continuously adjusting tool orientation relative to the workpiece surface. Traditional three-axis machines must sometimes approach features at compromised angles, forcing the tool to cut with its side rather than its tip or requiring multiple passes to achieve acceptable results. These compromised approaches generate higher cutting forces, increased vibration, and inconsistent chip formation that degrades surface quality. In contrast, the 5 axis cnc universal machining center positions the tool at the ideal rake angle and orientation for each specific cut, whether machining a flat surface, curved contour, or complex freeform shape. This optimal positioning reduces cutting forces by up to 40 percent, which translates directly into smoother surfaces, tighter tolerances, and longer tool life. The machine achieves surface finishes routinely measuring 0.4 micrometers Ra or better on appropriate materials, matching or exceeding results from grinding operations without the time and expense grinding requires. Your parts often move directly from the 5 axis cnc universal machining center to final inspection or assembly, skipping manual polishing, bead blasting, or other finishing processes that add cost and lead time. The dimensional accuracy benefits extend beyond simple linear dimensions to include critical form tolerances like flatness, perpendicularity, and position. Because the machine uses closed-loop feedback systems with linear scales and rotary encoders, it continuously monitors actual position versus commanded position, making real-time corrections that maintain accuracy throughout the cutting process. Thermal management systems compensate for temperature changes that cause expansion or contraction in machine structures, ensuring that morning parts match afternoon parts despite environmental variations. The rigid construction of the 5 axis cnc universal machining center, typically featuring heavy cast iron bases and precision ground ways or linear guides, provides the stable platform necessary for achieving these accuracy levels consistently. You can reliably hold tolerances within 0.005 millimeters across the entire working envelope, giving you confidence when bidding complex projects with demanding specifications that competitors cannot meet profitably.

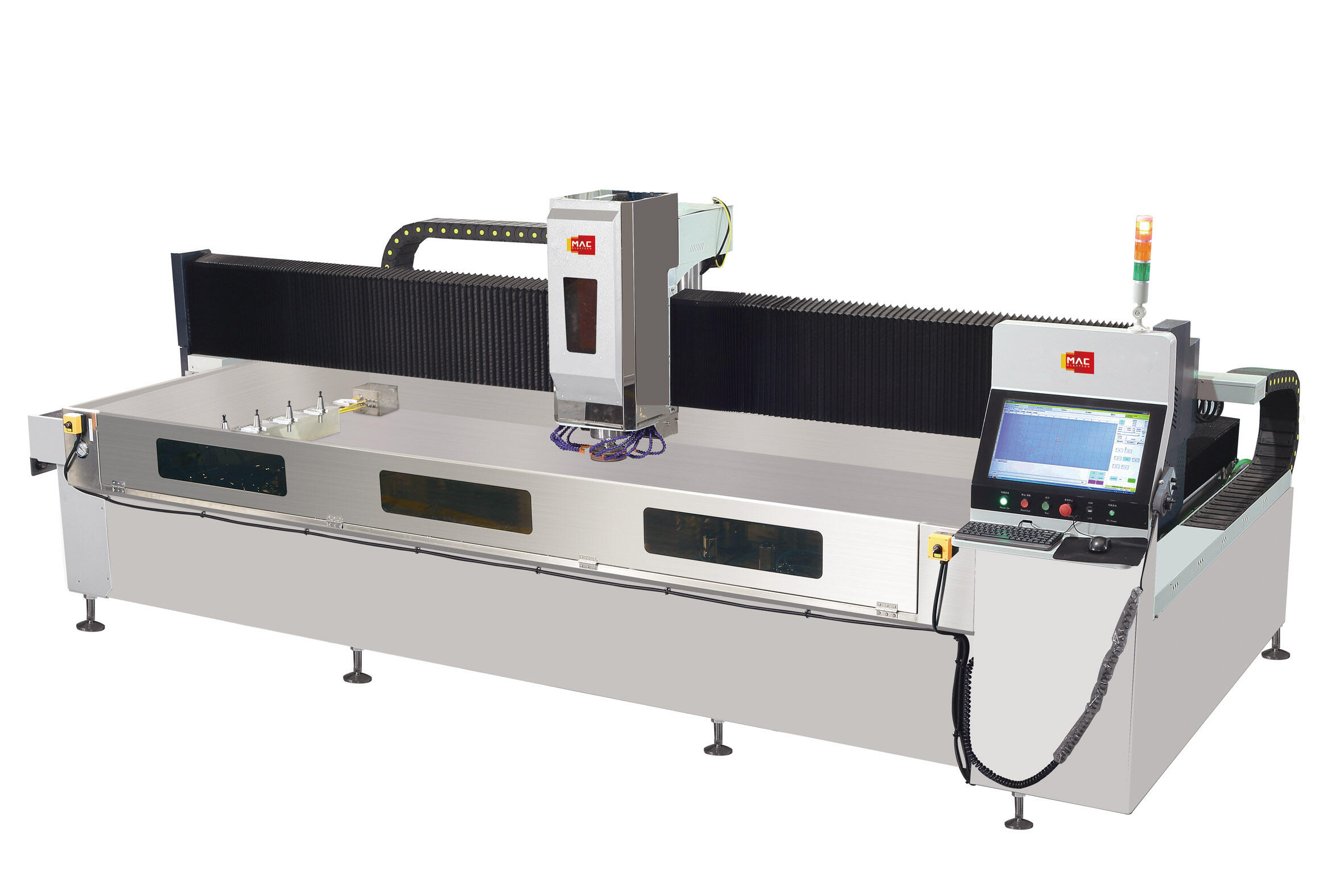

Modern 5 axis cnc universal machining center equipment incorporates sophisticated software and automation capabilities that dramatically simplify programming, reduce cycle times, and minimize operator intervention for lights-out manufacturing operations. The control systems feature graphical interfaces that allow programmers to visualize toolpaths in three dimensions, simulate complete machining sequences, and detect potential collisions before cutting the first chip. This simulation capability proves invaluable when programming complex five-axis movements where visualizing tool orientation and clearances becomes challenging without technological assistance. You can confidently program intricate parts knowing the simulation will reveal any issues in a virtual environment where mistakes cost nothing rather than discovering problems during expensive production runs. The control system automatically generates collision-free toolpaths when you select features to machine, calculating optimal approach angles and tool orientations that maximize efficiency while protecting your investment in equipment and workpieces. Advanced features like automatic tool measurement and breakage detection ensure that each tool meets length and diameter specifications before use, eliminating costly errors from worn or damaged tools. The 5 axis cnc universal machining center also incorporates workpiece probing systems that automatically locate part position and orientation on the table, establishing accurate coordinate systems without manual measurement and alignment procedures. This automatic probing capability becomes especially valuable in production environments where fixture loading variations might otherwise cause inconsistent results. Some systems include in-process probing that checks critical dimensions during machining, allowing the control to adjust subsequent operations if measurements fall outside acceptable ranges. This adaptive capability essentially provides real-time quality control, catching potential defects before completing the part rather than discovering issues during final inspection when correction costs multiply. The automation extends to tool management through systems that track tool usage, predict tool life based on cutting parameters, and schedule automatic tool changes before tools wear beyond acceptable limits. You maintain consistent quality without constant operator monitoring, and your machine continues running productively during breaks or shift changes. Integration with CAD and CAM software systems streamlines the entire process from design to finished part. You import solid models directly into CAM software that recognizes features and suggests appropriate machining strategies for the 5 axis cnc universal machining center, dramatically reducing programming time compared to manual G-code writing. Post-processors optimized for your specific machine configuration generate code that fully utilizes the equipment's capabilities, producing efficient programs that minimize cycle time while maintaining safety and accuracy.
